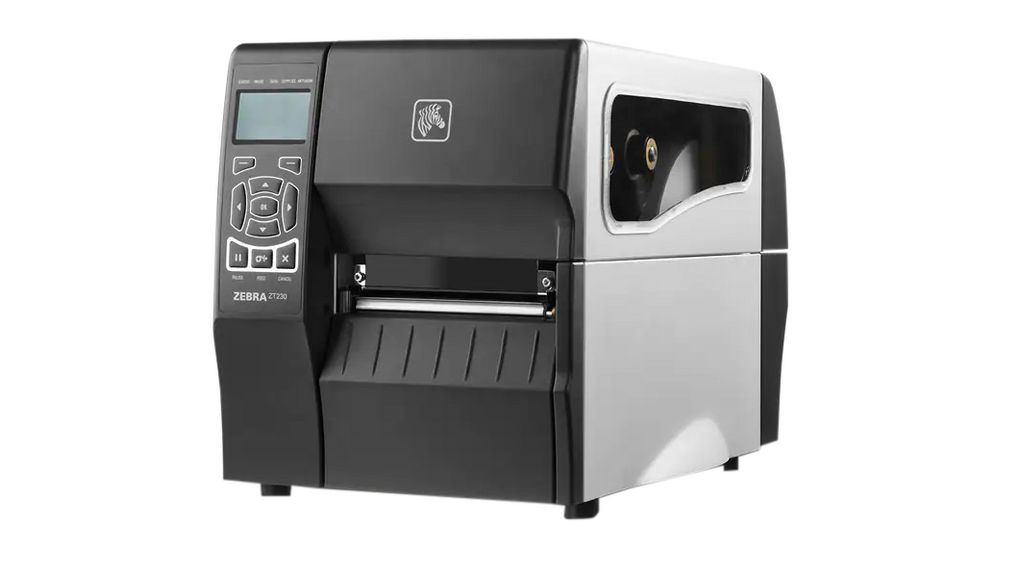

Zebra ZT230 203 DPI Industrial Direct Thermal Label Printer

Standard Features:

• Print methods: Direct-Thermal
• Construction: metal frame with a metal media cover
• Bi-fold media door with large clear window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Bi-color LEDs for quick printer status
• Icon-based LCD multilingual graphical user interface and full function keypad
• Communications: USB 2.0 and RS-232 Serial ports
• ENERGY STAR qualified

Printer Specifications:

• Resolution: 203 dpi/8 dots per mm
• Memory: 128 MB SDRAM memory / 128 MB on-board linear Flash memory
• Maximum Print Width: 4.09″/104 mm
• Maximum Print Speed: 6″/152 mm per second
• Media Sensors: Transmissive and reflective sensors
• Print Length: 203 dpi: 157″/3988 mm

Media Characteristics:

• Maximum Media Width: 0.75″/19.4 mm to 4.50″/114 mm
• Maximum Media Roll Size: 8.0″/203 mm O.D. on a 3.0″/76 mm I.D. core & 6.0″/152 mm O.D. on a 1.0″/25 mm I.D. core
• Thickness: 0.003″/0.076 mm to 0.010″/0.25 mm
• Media Types: Continuous, die-cut, notch, black mark

Operating Characteristics:

• Operating Temperature: 32ºF to 105ºF/0ºC to 40ºC
• Operating Humidity: 20% to 85% non-condensing
• Storage/Transportation Temperature: -40ºF to 140ºF/-40ºC to 60ºC
• Storage Humidity: 5% to 85% non-condensing
• Electrical: Universal auto-ranging (PFC-compliant) power supply 100-240 VAC; 47-63 Hz
• ENERGY STAR qualified

Physical Characteristics:

• Length Closed: 17″/432 mm
• Width Closed: Closed: 9.5″/242 mm
• Height Closed: 10.9″/277 mm
• Weight Closed: 20 lbs./9.1 kg
